PRODUCT

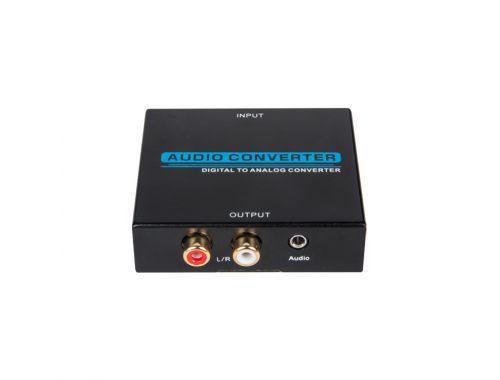

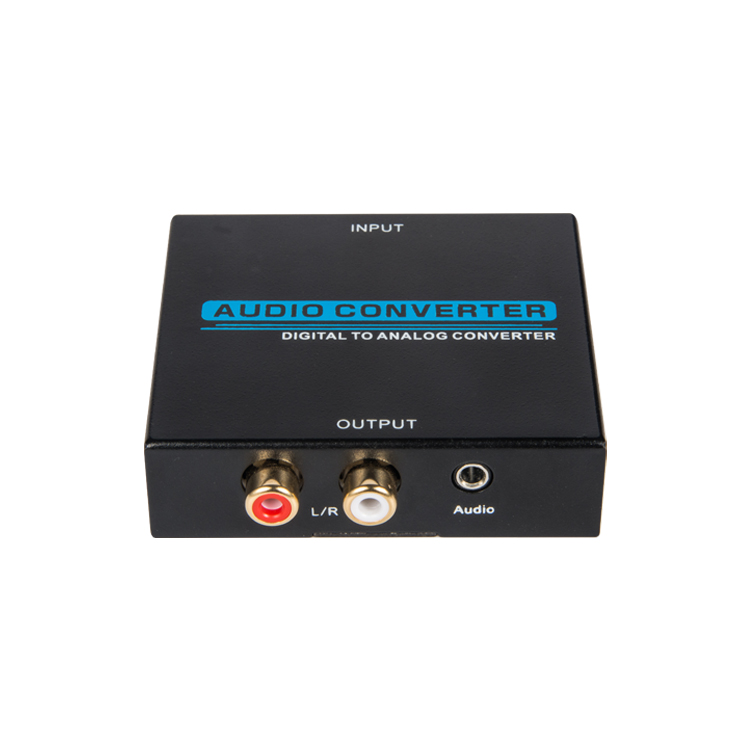

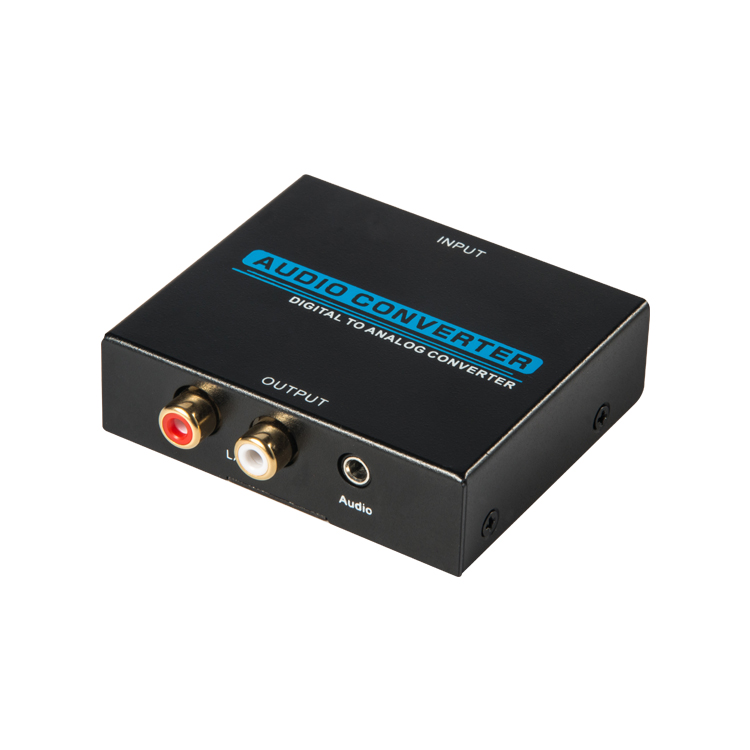

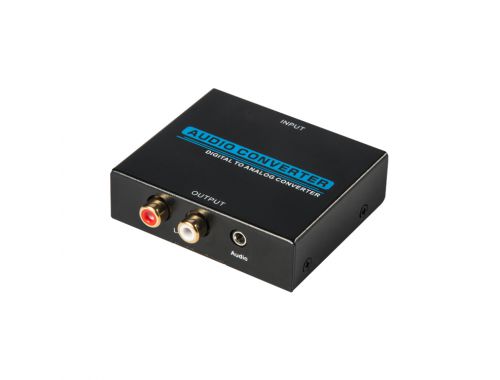

Digital audio to Analog+3.5mm Audio Converter

P/N: T-609A
Details

This Digital to Analog+3.5mm Audio Converter has many features that enable it to perform in a superior manner. Among those features you will find:

1、Converts Coaxial or Toslink digital audio signals to analog L/R audio+3.5mm earphone
2、Supports sampling rate at 32, 44.1, 48 and 96 KHz.
3、24-bit S/PDIF incoming bit stream on left and right channels
4、Provides electromagnetic-noise-free transmission.
5、Easy to install and simple to operate

Specifications

Input AudioOptical Toslink or Digital Coax RCA
Output AudioAnalog stereo (L and R) RCA+3.5mm earphone
Sampling rate32, 44.1, 48, and 96 KHz
Frequency Response20 Hz to 20 KHz ± 0.15 dB
Signal to Noise Ratio≥ 90dB
Crosstalk≤ -85 dB
Distortion≤ 0.004%
Input Power5 VDC, 2A
Power Connector Size5.5 mm barrel, 2.1 mm pin
Power Consumption0.5 watts (max)
Dimensions (LxWxH)51 x 41 x 26mm
Weight98g
Operating Temperature0°C to +70°C
Operating Humidity10% to 85% RH (no condensation)
Storage Temperature-10°C to +80°C
Storage Humidity5% to 90% RH (no condensation)
Regulatory ComplianceFCC,CE,UL
